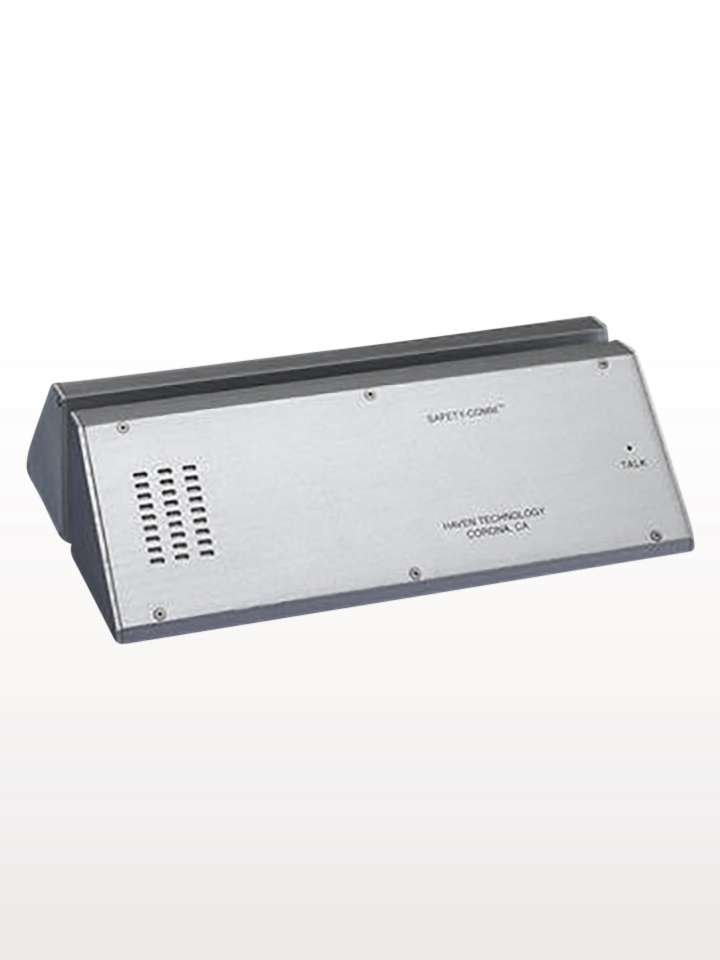

Talk-thru communicator is designed for applications where a cutout in the barrier is impractical. The SC-200 is vandal-resistant on both sides and is recommended for detention facilities.
FEATURES
Two-way communication is accomplished through the use of speakers and microphones located on each side of the partition. All controls are located within the SC-200 perfect for high security environments.
- Rugged Aluminum Construction
- Duplex Communication
- Voice Activated Switch
- Background Noise Level Monitoring
- Level Detection and Attenuation Control
- Linear Volume Control
- Dimensions: 4.2"w x13.5"h
SPECIFICATIONS
The SC-200 provides electronic two-way, hands-free audio communications (duplex) between a partition.
The SC-200 is equipped with a factory adjusted VOX switch to prevent ambient noise (below 85 decibels) from activating the unit. The SC-200 contains two voice channels, each incorporating a microphone
amplifier, VOX switch, compressor, and a power amplifier. The sound amplifier does not exceed a 0.2%
total harmonic distortion rating.
The SC-200 is fully operational between 0C and 50C.
Each order comes with an AC/DC power supply (120V AC stepped down to filtered 12V DC) and a 1-year warranty.
APPLICATIONS
Movie Theaters, Ticket Booths, Sport Arenas, etc.
| Drawing 6256 | Installation diagram MODEL #: SC-200 |
